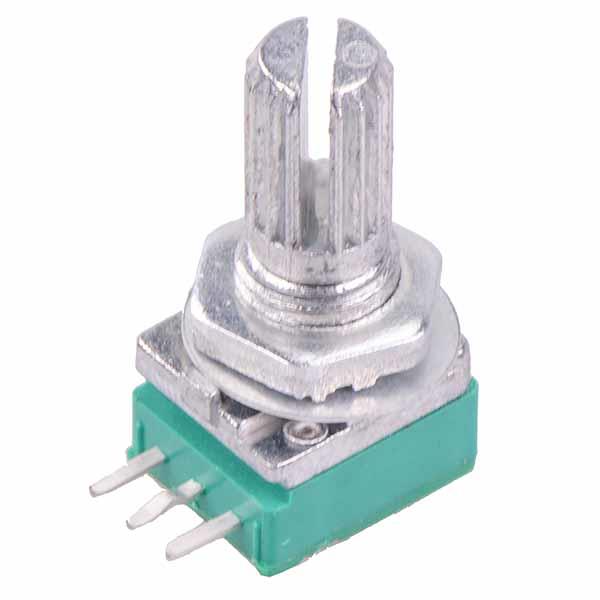

100K Linear 9mm Potentiometer Knurled 6mm Metal Shaft
SKU 482354
MPN: 482354
Availability:
302 in stock
Original price
£0.66
-
Original price
£0.66
Original price
£0.66
£0.66
-
£0.66
Current price
£0.66
100K linear 9mm potentiometer featuring a metal 6mm splined shaft. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.
Metal 6mm splined shaft 7mm panel cut-out ±20% tolerance 15mm shaft length 0.05W power rating 50V AC maximum operating voltage
Specification
| Back Order Lead Time | 45 Days |
| Maximum Voltage | 50VAC |
| Mounting Hole Diameter | 7mm |
| Mounting Type | PCB |
| Operating Temperature | -10°C to +70°C |
| Pitch | 2.5mm |
| Power Rating | 0.05W |
| Resistance | 100KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
