100381 APEM 2 Axis 4 Position Fingertip Joystick 10A 12VDC

by APEM
SKU 488555

MPN: 3D1ZBE08135

Availability:
25 in stock
Original price £108.94 - Original price £108.94
Original price
£108.94 Inc VAT
£108.94 - £108.94
Current price £108.94 Inc VAT

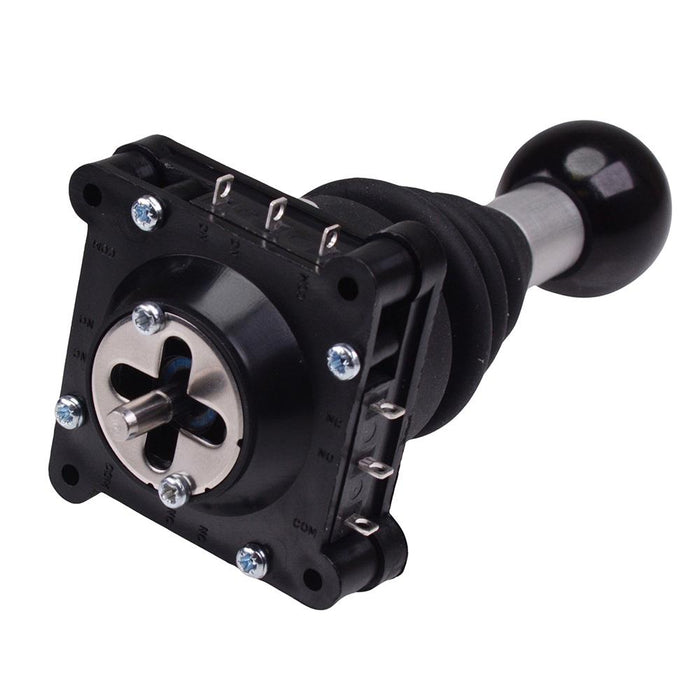

The 3D1ZBE08135 is a high quality 4 position joystick with 2 axis, manufactured by APEM. The 1000HE series is a versatile switch based joystick ideal for work in harsh environments and applications. The joystick features two sealing boots and IP67 protection designed for applications including truck lift gates and electric vehicle controls.

  • 2 axis
  • Sealing: IP67
  • Rating: 10A 30VDC
  • Panel cut-out: 22mm>/li>
  • V4 microswitches
  • Single pole
  • Round handle
  • Dimensions: 44 x 44 x 115mm (length x width x height)
  • Specification
    Back order lead time 10 Days
    Handle Round
    Joystick travel ±12°
    Mechanical life 5,000,000 Cycles
    Number of axis 2
    Operating temperature -20°C to +50°C
    Protection level IP67
    Rating 10A 12VDC
    Technology Microswitch
    Terminal type Solder
    Request a quote
