100212 APEM 2 Axis 4 Position Fingertip Joystick 4A 30VDC

by APEM
SKU 488553

MPN: 1D15F1500

Availability:
49 in stock
Original price £41.97 - Original price £41.97
Original price
£41.97 Inc VAT
£41.97 - £41.97
Current price £41.97 Inc VAT

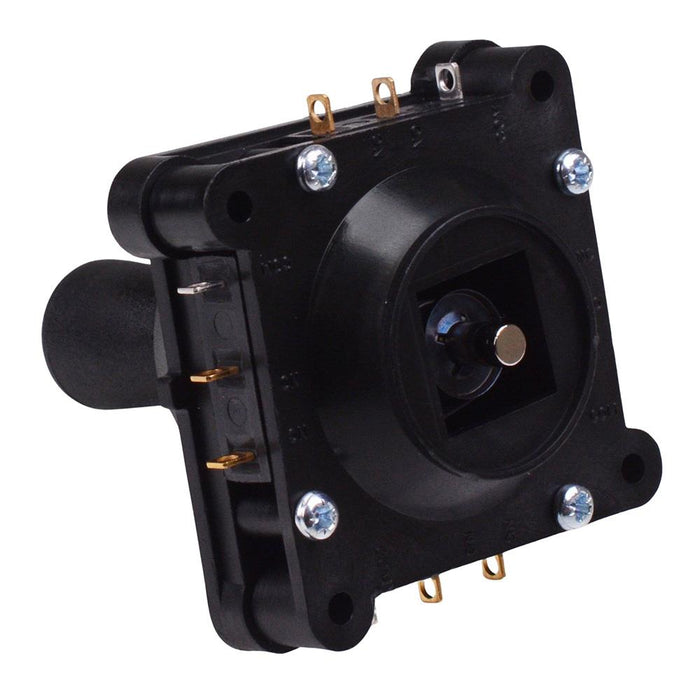

The 1D15F1500 is a high quality 4 position joystick with 2 axis, manufactured by APEM. The 1000 series is a versatile low-cost joystick ideal for light to medium duty envirnments where proportional control is not a necessity. The joystick is single pole based on V4 microswitches with a 4A 30VDC rating and is suitable for a wide range of applications.

  • 2 axis
  • Sealing: IP67 above panel
  • Rating: 4A 30VDC
  • 22mm bush mounting
  • Conical handle
  • Bush mount boot
  • Mounting hole pitch: 36 x 36mm
  • Dimensions: 44 x 44 x 64mm (length x width x height)
  • Specification
    Back order lead time 10 Days
    Handle Conical
    Joystick travel ±12°
    Mechanical life 5,000,000 Cycles
    Number of axis 2
    Operating temperature -20°C to +50°C
    Protection level IP67
    Rating 4A 30VDC
    Technology Microswitch
    Terminal type Solder
