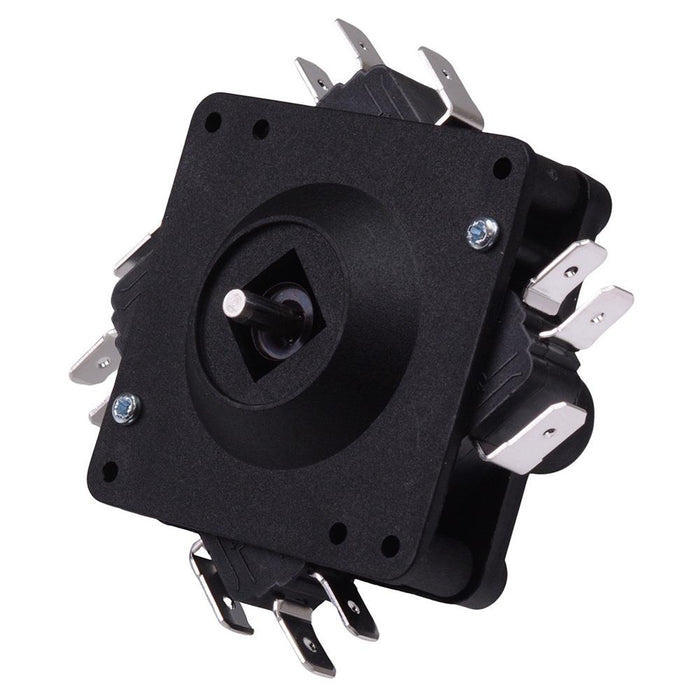

100112 APEM 2 Axis 4 Position Fingertip Joystick 10A 30VDC

SKU 488552

MPN: 2V17F1100

50 in stock
Original price £24.29 - Original price £24.29
Original price
£24.29 Inc VAT
£24.29 - £24.29
Current price £24.29 Inc VAT
The 2V17F1100 is a high quality 4 position joystick with 2 axis, manufactured by APEM. The 1000 series is a versatile low-cost joystick ideal for light to medium duty envirnments where proportional control is not a necessity. The joystick is single pole based on V3 microswitches with a 10A 30VDC rating and is suitable for a wide range of applications.

  • 2 axis
  • Sealing: IP67 above panel
  • Rating: 10A 30VDC
  • 4 point screw mounting
  • Conical handle
  • Screw mount boot
  • Mounting hole pitch: 45.5 x 45.5mm
  • Dimensions: 53.5 x 53.5 x 67.5mm (length x width x height)
  • Specification
    Back order lead time 10 Days
    Handle Conical
    Joystick travel ±12°
    Mechanical life 5,000,000 Cycles
    Number of axis 2
    Operating temperature -20°C to +50°C
    Protection level IP67
    Rating 10A 30VDC
    Technology Microswitch
    Terminal type Quick Connect
