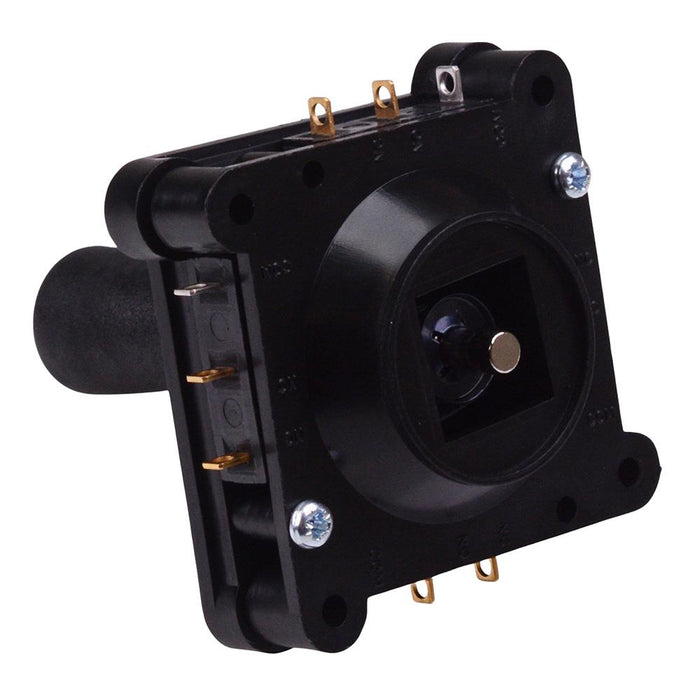

100105 APEM 2 Axis 4 Position Fingertip Joystick 4A 30VDC

by APEM
SKU 488554

MPN: 1V15F1100

Availability:
50 in stock
Original price £27.78 - Original price £27.78
Original price
£27.78 Inc VAT
£27.78 - £27.78
Current price £27.78 Inc VAT
The 1V15F1100 is a high quality 4 position joystick with 2 axis, manufactured by APEM. The 1000 series is a versatile low-cost joystick ideal for light to medium duty envirnments where proportional control is not a necessity. The joystick is single pole based on V4 microswitches with a 4A 30VDC rating and is suitable for a wide range of applications.

  • 2 axis
  • Sealing: IP67 above panel
  • Rating: 4A 30VDC
  • 4 point screw mounting
  • Conical handle
  • Screw mount boot
  • Mounting hole pitch: 36 x 36mm
  • Dimensions: 44 x 44 x 64mm (length x width x height)
  • Specification
    Back order lead time 10 Days
    Handle Conical
    Joystick travel ±12°
    Mechanical life 5,000,000 Cycles
    Number of axis 2
    Operating temperature -20°C to +50°C
    Protection level IP67
    Rating 4A 30VDC
    Technology Microswitch
    Terminal type Solder
    Request a quote
