10 Way Standard Blade Fuse Box with LED Indication Negative Busbar 100A R3-76B-01-3L110
by SCI
SKU 491348
MPN: R3-76B-01-3L110
Availability:
31 in stock
Original price
£21.43
-
Original price
£21.43
Original price
£21.43
£21.43
£21.43
-
£21.43
Current price
£21.43

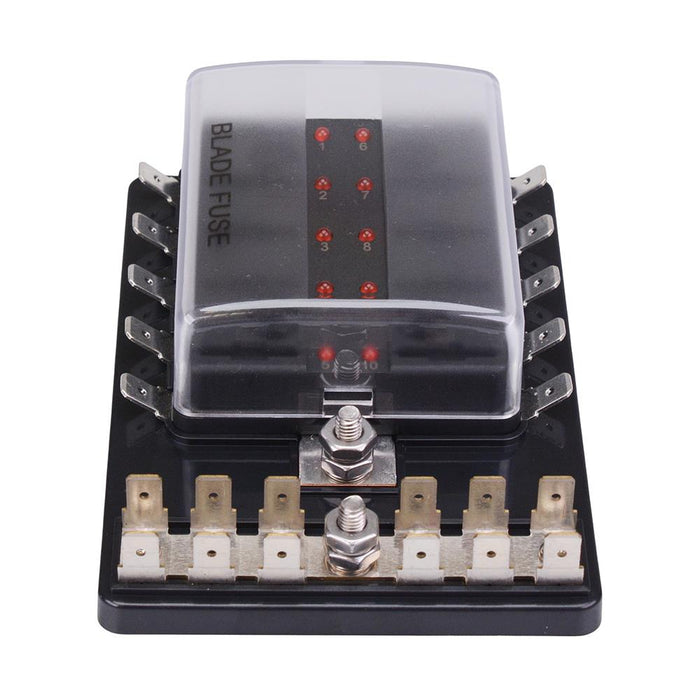

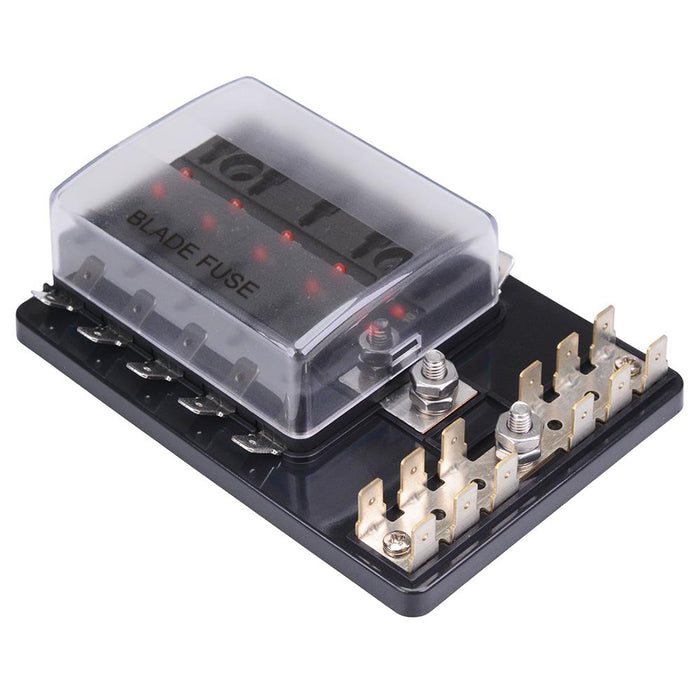

The R3-76B-01-3L110 is a 10 way standard blade fuse box, featuring a clear plastic lid and red LED indicators for when a fuse is blown. The box features negative busbar and 6.3mm quick connect terminals. The box features 30A circuit rating per circuit and is suitable for a wide range of 12V and 24V applications.
10 way blade fuses Input rating: 100A Output rating: 30A per circuit Red LED indication Negative busbar 6.3mm quick connect terminals Dimensions: 125.4 x 88 x 37.5mm (length x width x height)
Specification
| Back Order Lead Time | 150 |
| Current Rating | 100A |
| Fuse Size | Standard Blade |
| MOQ | 1 |
| Mounting Style | Chassis Mount |
| Number of Fuses | 10 |
| Voltage Rating | 32VDC |
