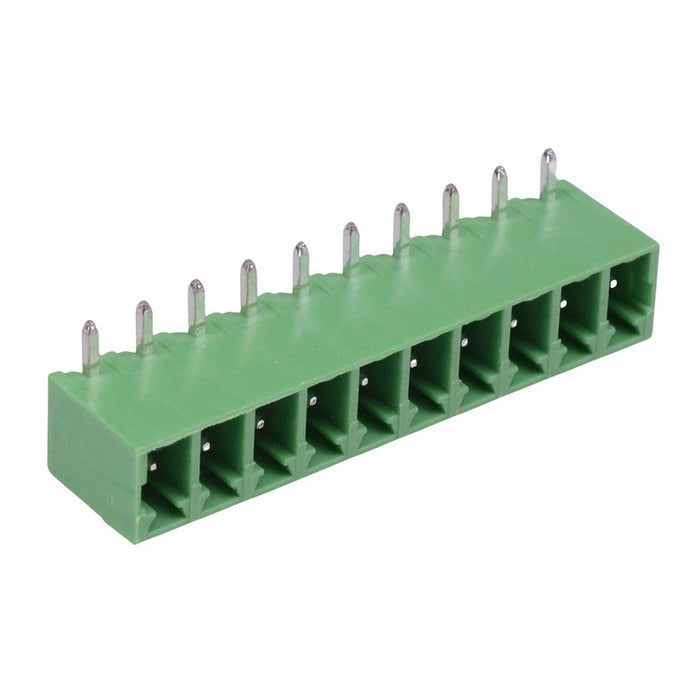

10-Way 3.81mm Horizontal PCB Header Closed Ends 8A 300V
by Degson
SKU 488735
MPN: 15EDGRC-3.81/10P
Availability:
11 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
£0.62
£0.62
-
£0.62
Current price
£0.62
10 pole PCB header manufactured by Degson, featuring a 3.81mm pitch and horizontal orientation. The headers are rated up to 8A, making them suitable for mating with 3.81mm pluggable terminal blocks.
10 pole 3.81mm pitch Horizontal orientation Closed ends Material: PA66 PCB hole diameter: 1.4mm Rating: 8A 300V
Specification
| Back Order Lead Time | 150 Days |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 10 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.81mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
