10-Way 3.5mm Right Angle Pluggable Terminal Block 8A 300V
by Degson
SKU 488699
MPN: 15EDGK-3.5/10P
Availability:
92 in stock
Original price
£1.11
-
Original price
£1.11
Original price
£1.11
£1.17
£1.17
-
£1.17
Current price
£1.17

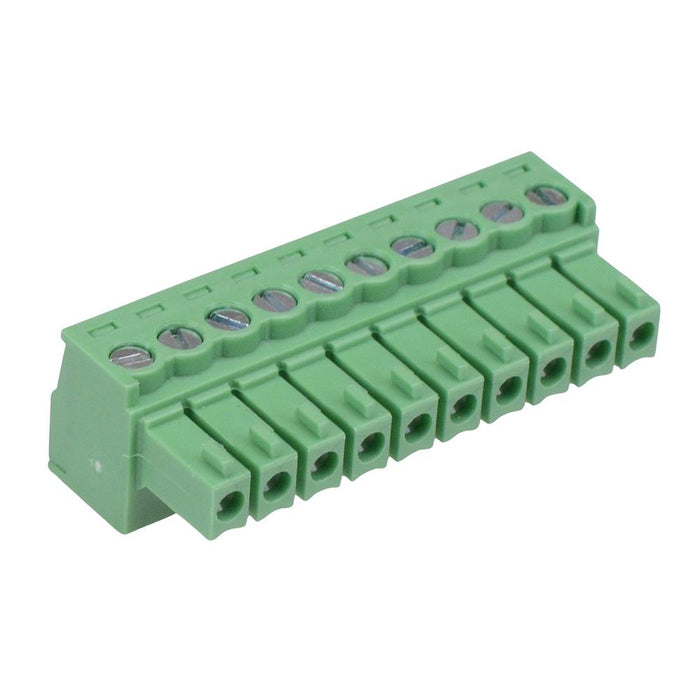

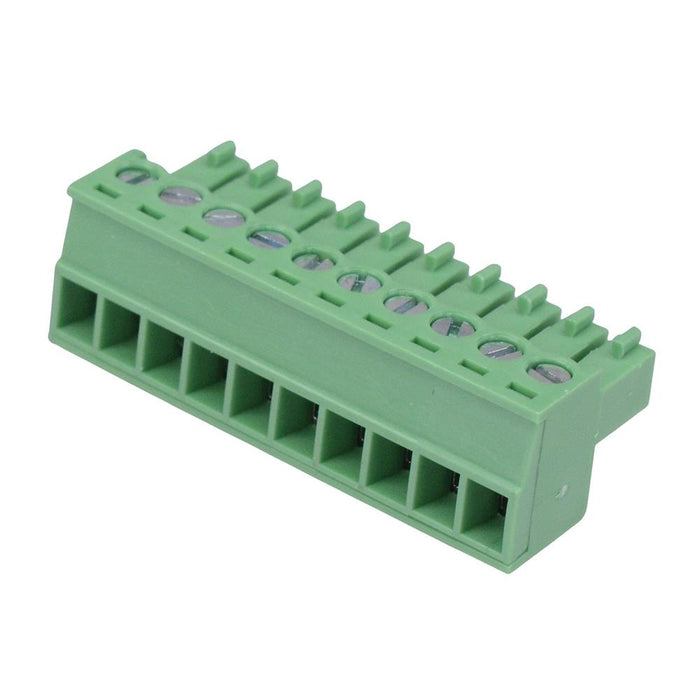

10 pole pluggable terminal block by Degson, featuring a 3.5mm pitch and right angle orientation. The terminal blocks are rated up to 8A, suitable for mating with 3.5mm open and closed style PCB headers.
10 pole 3.5mm pitch Right angle Material: PA66 Rating: 8A 300V Wire size: 28-16AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 10 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-16AWG |
