10-Way 2.5mm 45° Screwless PCB Terminal Block Grey 2A 300V

SKU 487825

MPN: AK4191/10KDVP-2,5-PEBBLE GREY

Availability:
289 in stock
Original price £0.97 - Original price £0.97
Original price
£0.97 Inc VAT
£0.97 - £0.97
Current price £0.97 Inc VAT

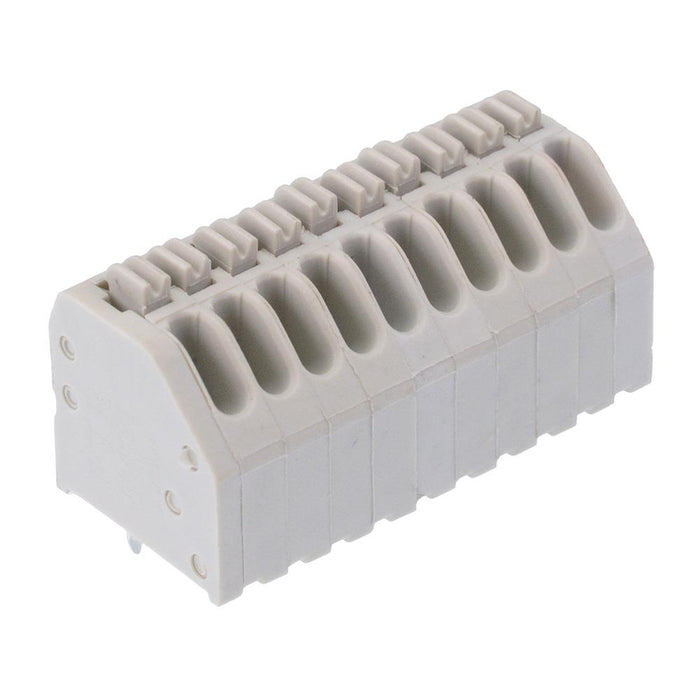

10 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 2.5mm pitch and 45° wire entry to the board. The terminal blocks are rated up to 2A, making them suitable for a wide range of PCB applications.

  • 10 pole
  • 2.50mm pitch
  • Alternating pins
  • Push-in connection
  • With lever
  • 45° wire entry to the board
  • Material: PA66
  • Rating: 2A 150V
  • Wire size: 26-20AWG
  • Specification
    Back order lead time 10 Days
    Colour Grey
    Contact material Bronze
    Current rating 2A
    Housing material PA66
    Mounting type PCB Mount
    Number of ways 10
    Operating temperature -40°C to +105°C
    Pitch 2.50mm
    Termination method Push Clamp
    Voltage rating 300VAC
    Wire range 26-20AWG
