1 Pole 12 Way Rotary Switch 6mm Actuator
SKU 483320
MPN: 483320
Availability:
107 in stock
Original price
£1.31
-
Original price
£1.31
Original price
£1.31
Inc VAT
£1.31
-
£1.31
Current price
£1.31
Inc VAT

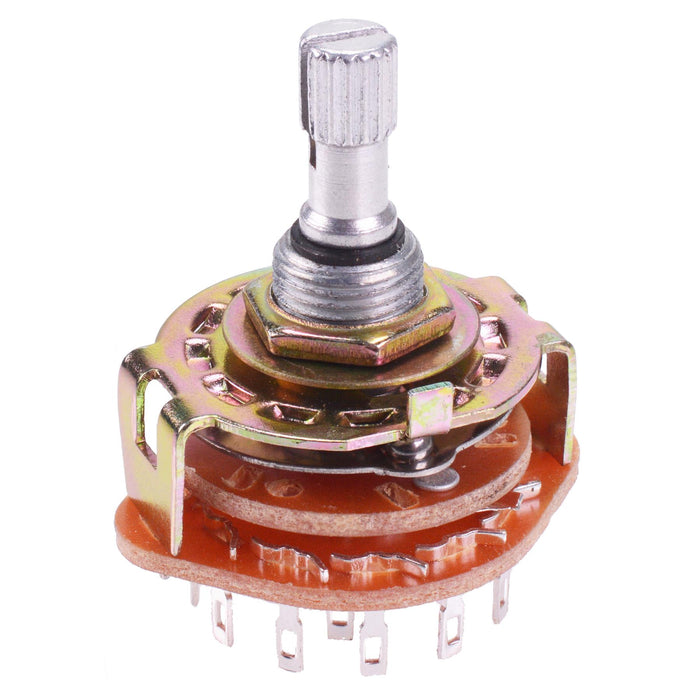

1 pole 12 way rotary switch featuring a splined 6mm shaft featuring solder terminals, suitable for panel mount applications.
1 pole 12 position 0.5A 125VAC, 0.3A 250VAC Solder terminals 6mm splined shaft Mounting hole diameter: 9.5mm Dimensions: 39.5 x 31mm (Height x Width)
Specification
| Back order lead time | 45 Days |
| Contact configuration | 1P12T |
| Contact rating | 0.5A 125VAC, 0.3A 250VAC |
| Current rating | 0.5A @ 125VAC |
| Electrical life | 20,000 Cycles |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of ways | 12 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 9.5mm |
| Terminal type | Solder |
| Voltage rating | 250VAC |
