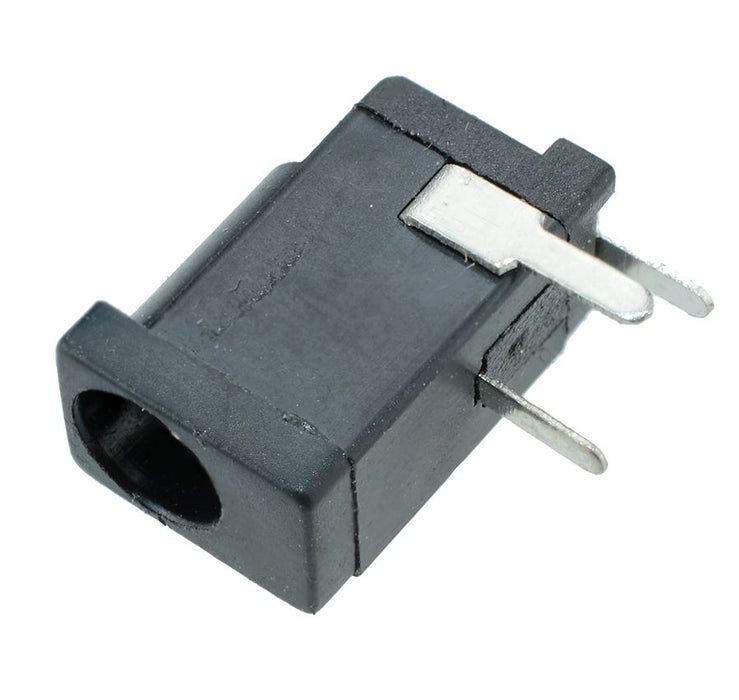

1.3mm x 3.5mm PCB DC Power Socket

SKU 210058

MPN: 210058

Availability:
1124 in stock
Original price £0.38 - Original price £0.38
Original price
£0.38 Inc VAT
£0.38 - £0.38
Current price £0.38 Inc VAT
Low cost PCB mounting DC power socket suitable for a range of low current applications.

  • 1.3 x 3.5mm size
  • Right angle type
  • Solder lug termination
  • Single pole switch
  • 2A current rating
  • Voltage rating: 16VDC
  • Specification
    Back order lead time 45 Days
    Colour Black
    Contact material Nickel Plated Copper
    Contact rating 2A 16VDC
    Housing material PBT
    Inner diameter 1.3mm
    Mounting type PCB
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 3.5mm
    Termination method Solder
