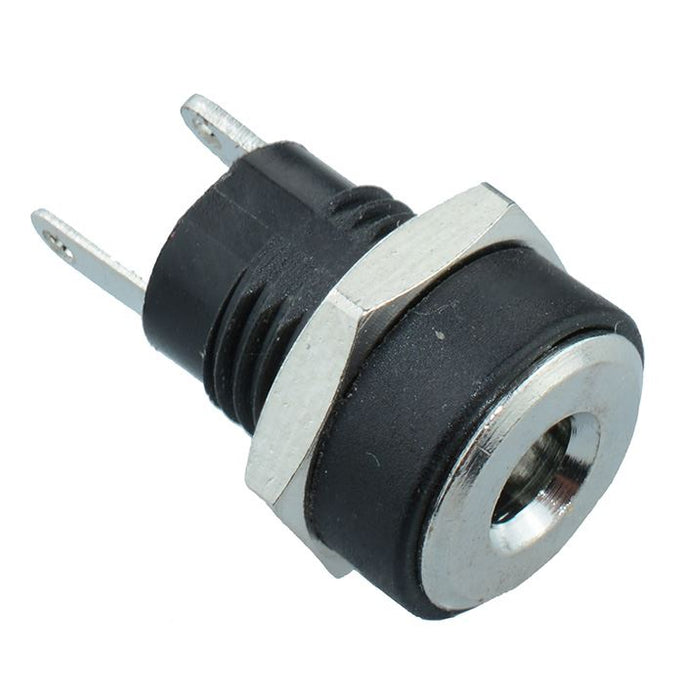

1.3mm x 3.5mm Panel Mount DC Power Socket

SKU 210059

MPN: 210059

Availability:
189 in stock
Original price £0.64 - Original price £0.64
Original price
£0.64 Inc VAT
£0.64 - £0.64
Current price £0.64 Inc VAT
Panel mounting DC power sockets suitable for applications where limited space requires a socket with smaller dimensions.
  • 1.3mm x 3.5mm size
  • Solder lug termination
  • Panel cut-out: 8mm
  • Current rating: 0.5A
  • Voltage rating: 30VDC
  • Suitable for panel thickness up to 4mm
  • Dimensions: 18.2 x 10.2mm (Length x Diameter)
  • Supplied with fixing nut
  • Specification
    Back order lead time 45 Days
    Colour Black
    Contact material Nickel Plated Brass
    Contact rating 0.5A 30VDC
    Housing material ABS
    Inner diameter 1.3mm
    Mounting type Panel
    Number of pins 2
    Operating temperature -30°C to +70°C
    Outer diameter 3.5mm
    Panel cut out 8mm
    Termination method Solder
