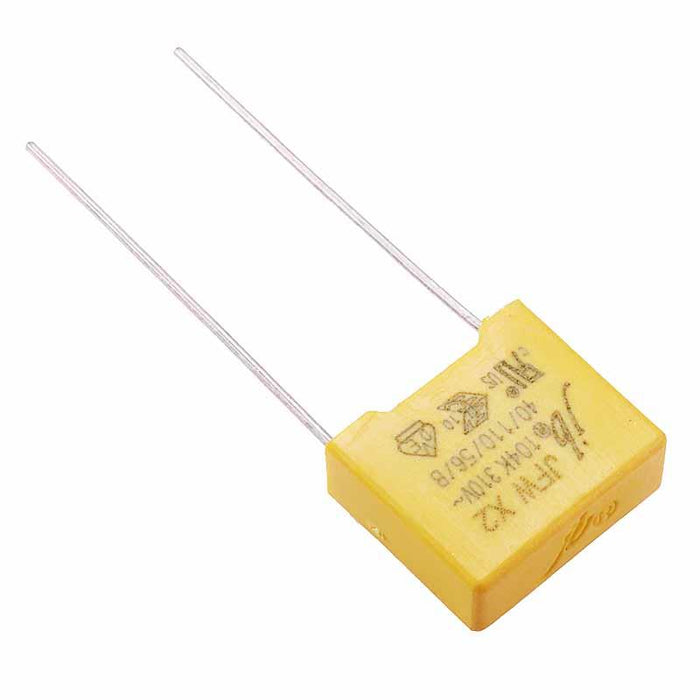

0.22uF 310VAC X2 Metallised Polypropylene Film Capacitor 10mm Pitch

SKU 482885

MPN: JFW-X2

Availability:
4020 in stock
Original price £0.19 - Original price £0.19
Original price
£0.19 Inc VAT
£0.19 - £0.19
Current price £0.19 Inc VAT
220nF 310VAC metallised polypropylene suppression capacitors manufactured from a non-inductive plastic case sealed with epoxy resin. The capacitors are used in across-the-line, interfernece supression circuits.

  • ±10% tolerance
  • 10mm pitch
  • Class X2
  • Dimensions: 13 x 11 x 6mm (Length x Height x Thickness)
  • Specification
    back order lead time 45 Days
    capacitance 220nF
    height 12mm
    length 13mm
    material Polypropylene
    MOQ 5
    mounting style Through Hole
    operating temperature -40°C to +110°C
    pitch 10mm
    thickness 6mm
    tolerance ±10%
    voltage rating 310VAC
