Right Hand Reed Switch Flange Mount SPST-NO 500mA 400V - MMPSA 240/30, S1692
by Comus
SKU 552608
MPN: S1692
Availability:
13 in stock
Original price
£4.56
-
Original price
£4.56
Original price
£4.56
Inc VAT
£4.56
-
£4.56
Current price
£4.56
Inc VAT

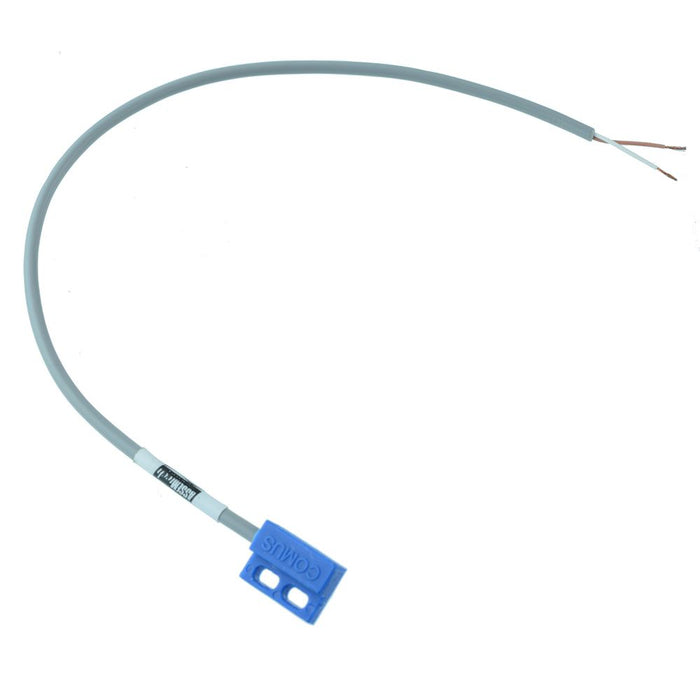

The MMPSA 240/30 is a rectangular reed switch featuring normally open contacts and a blue nylon 66 case. The proximity switch is suitable for applications including position and limit sensing sensing, linear actuators, security system switch and door switch.
Suggested magnet: MMPSM Right handed entry Normally open contacts Blue nylon 66 case Maximum switching voltage: 400VAC Maximum switching current: 0.5A Maximum switching capacity: 10W/VA Switching distance: 10mm Min 2 x Round 0.14mm² PVC covered Grey and insulated Brown / White cable
Specification
| Back order lead time | 180 Days |
| Contact configuration | SPST-NO |
| Material | Nylon 66 |
| Maximum switching capacity | 10W/VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 400VAC |
| Operating temperature | -20°C to +85°C |
