On-On Mini Horizontal PCB Slide Switch SPDT 5A
SKU 483111
MPN: 483111
Availability:
Out of stock
Sold out
Original price
£0.85
-
Original price
£0.85
Original price
£0.85
£0.85
-
£0.85
Current price
£0.85

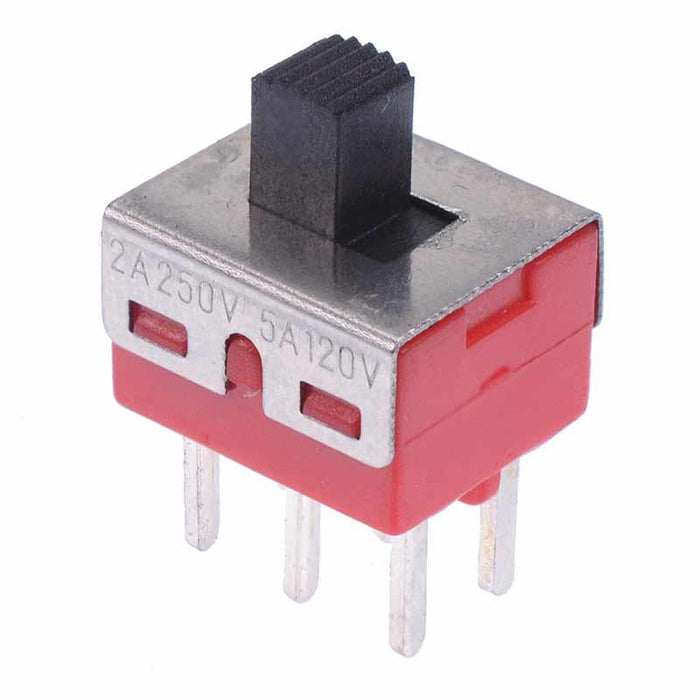

On-On miniature slide switch featuring SPDT contacts and solder terminals. The switch features a 5A current rating and is suitable for mounting vertically to the PCB.
On-On action SPDT contacts Solder terminals 5mm knob height Rating: 3A 250VAC, 5A 125VAC / 28VDC Terminal pitch: 4mm Body dimensions: 11.3 x 13.4 x 6.4mm (Length x Width x Height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPDT |
| Contact Rating | 2A 250VAC, 5A 125VAC / 28VDC |
| Current Rating | 5A |
| Electrical Life | 30,000 Cycles |
| Material | DAP & Stainless Steel |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Pitch | 4mm |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 250VAC |
